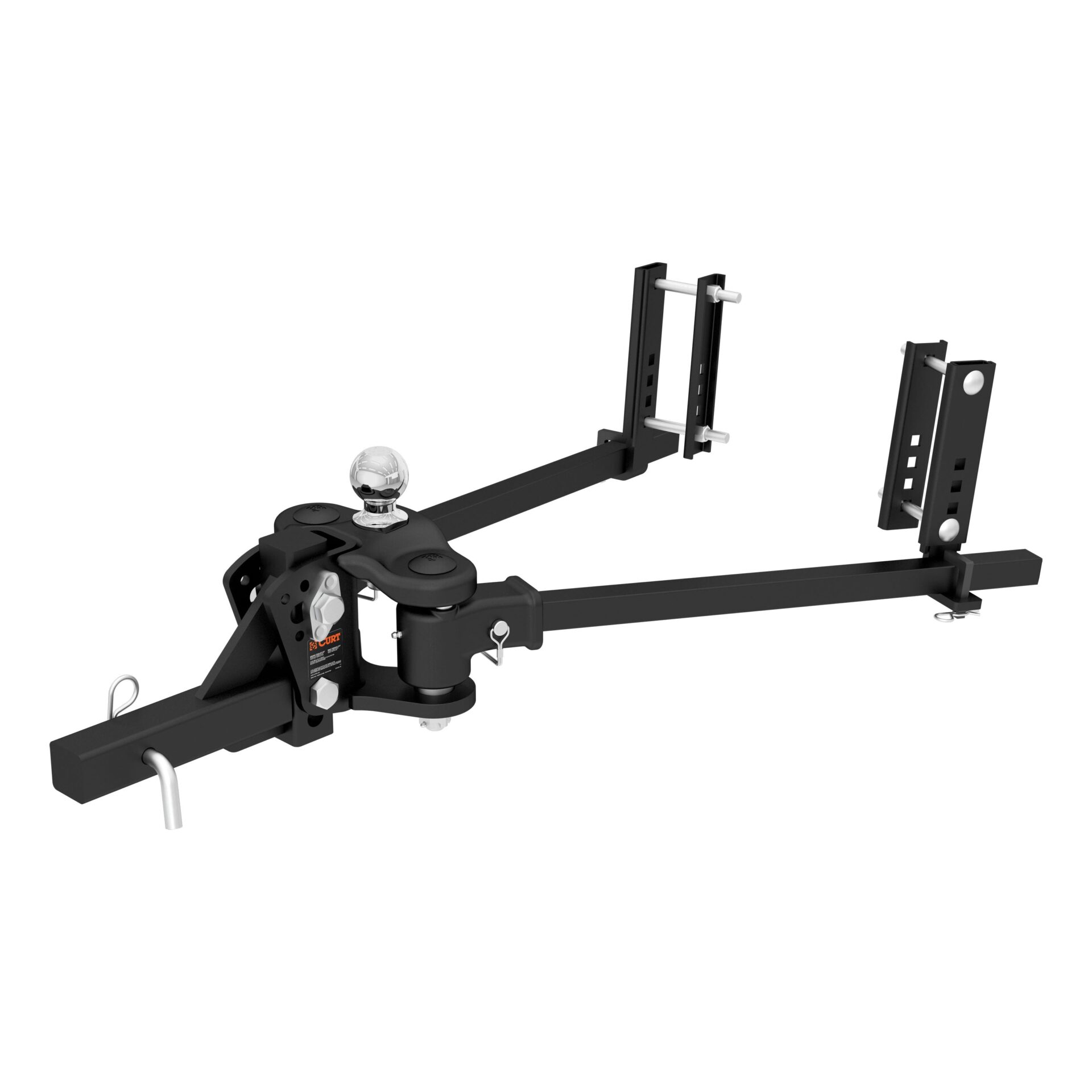

Curt TruTrack 4P Weight Distribution Hitch 2" Shank w/ 4x Sway Control 17499
Improve towing stability, control and comfort with the CURT 17499 TruTrack 4P Weight Distribution Hitch. Designed for trailers with a 5,000 to 8,000-lb. gross trailer weight and 500 to 800-lb. tongue weight, the TruTrack combines weight distribution and active sway control into one integrated towing system.
Unlike traditional weight distribution systems that rely on chains, the TruTrack uses heavy-duty adjustable support brackets to hold the spring bars in position both vertically and laterally. This design creates two points of sway resistance at the trailer frame, while CURT’s integrated spring-and-cam system in the hitch head provides two additional points of active sway control. Together, these four points of sway control help keep the trailer aligned behind the tow vehicle.
The system uses forged steel trunnion-style spring bars to leverage trailer tongue weight and distribute it more evenly across the axles of the tow vehicle and trailer. This helps level the towing combination while improving handling and stability.
Installation and adjustment are simplified with an adjustable head design featuring interlocking nuts and preset tilt positions. The included 2-inch shank can also be flipped to provide the necessary rise or drop for different trailer setups.
The CURT 17499 includes the hitch head, adjustable shank, two spring bars, support brackets, hitch pin and clip, and necessary installation components. The trailer ball is sold separately.
Product Features
- Integrated 4-Point Sway Control – Actively helps resist trailer sway at four points.
- Weight Distribution System – Helps distribute trailer tongue weight across the tow vehicle and trailer axles.
- 5,000–8,000-Lb. GTW Rating – Designed for trailers within this gross trailer weight range.
- 500–800-Lb. Tongue Weight Range – Light-duty TruTrack configuration designed for this tongue-weight range.
- Spring & Cam Sway Control – Hardened internal components actively resist sway while allowing smoother turns.
- Fixed Support Brackets – Eliminates traditional spring-bar chains while providing additional lateral sway resistance.
- Forged Steel Trunnion Bars – Heavy-duty spring bars provide strength and effective weight distribution.
- 2″ Receiver Shank – Fits standard 2-inch receiver applications.
- Adjustable Rise & Drop – Shank can be flipped to accommodate different trailer heights.
- Adjustable Head Tilt – Preset adjustment positions simplify hitch setup.
- A-Frame Trailer Compatibility – Designed to fit virtually all A-frame trailer configurations.
- Carbide Black Powder Coat – Durable finish helps protect steel components from corrosion.
- Trailer Ball Sold Separately – Allows the appropriate trailer ball to be selected for the application.
